The frequency ranges listed are for reference only and are not exhaustive. If you want other frequency ranges, please contact us for customization
Features：

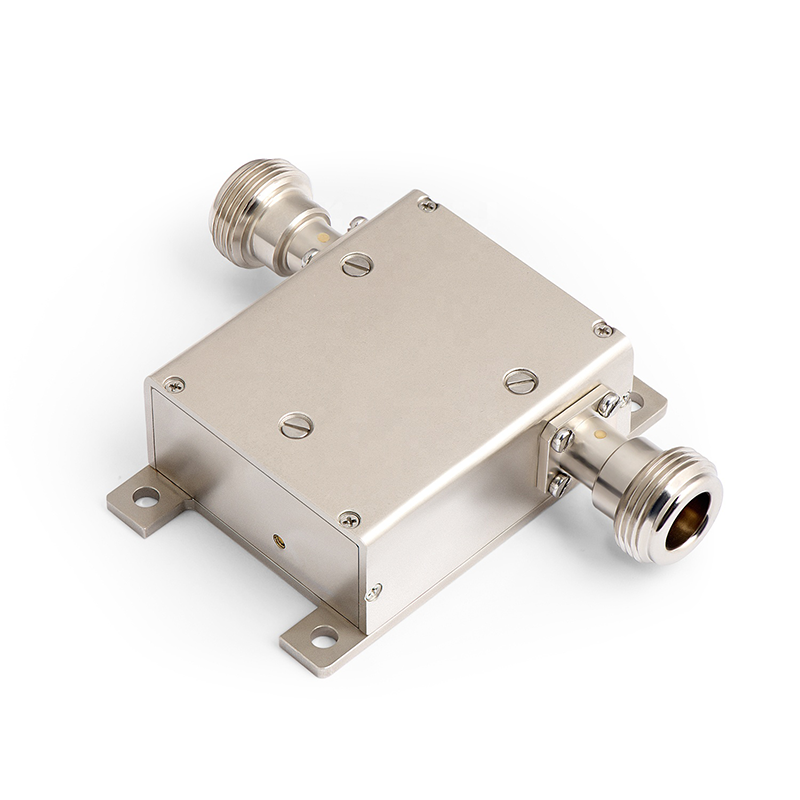

Kejie RF isolators and circulators are known for their perfect temperature behavior
high shock-resistant design, low insertion loss, high isolation and wide range of processing power
customization capabilities and guaranteed after-sales service.
Application:
RF circulators and isolators are widely used in radar systems, telecommunications infrastructure,
military (Navy, Marine Corps and aerospace), microwave radio systems, communications systems, radio systems,
R&D laboratories and mining, production and defense industries.
Similar Models
| Frequency Range (MHz) |
I.L.(dB) |
Isolation (dB) |
Avg Power(W) |
Type |
Dimension (mm) |
|
1800-2200 |
0.35 | 18 | 60 | Drop-in | 19*19*8.6 |
| 1800-2200 | 0.35 | 18 | 60 | Drop-in | 19*19*8.6 |
| 1805-1880 | 0.25 | 25 | 100 | Drop-in | 19*25.4*8.2 |
|
1805-1880 |
0.25 | 23 | 10 | Drop-in | 12.7*12.7*7 |
| 1805-2170 |
0.3 |
20 | 100 | Drop-in | 25.4*31.7*9 |
| 1805-2690 |
0.5 |
15 | 100 | Drop-in | 25.4*31.7*9.1 |
| 1805-2170 | 0.3 | 20 | 100 | Drop-in | 25.4*25.4*8.6 |
| 1835-1880 | 0.3 | 20 | 10 | SMD | 12.5Ø |
| 2000-2400 | 0.3 | 20 | 30 | Drop-in | 19*19*8.6 |
| Frequency Range (MHz) |
I.L.(dB) |
Isolation (dB) |
Avg Power(W) |
Type |
Dimension (mm) |
| 2025-2120 | 0.25 | 23 | 300 |
Drop-in |
31.7*25.4*10 |
| 2025-2120 | 0.3 | 23 | 500 | Coaxial | 30*47.5*20 |
| 2110-2170 | 0.3 | 23 | 10 | Drop-in | 12.7*12.7*7 |
| 2300-2700 | 0.35 | 20 | 30 | Drop-in | 20*20*8.6 |
| 2300-2500 | 0.3 | 23 | 100 | Drop-in | 19*25.4*8.2 |
| 2400-2500 | 0.3 | 23 | 30 | Drop-in | 17.5*13*7 |
| 2400-2500 | 0.3 | 23 | 300 | Drop-in | 35.6*25.4*10 |
| 2400-2500 | 0.25 | 23 | 10 | SMD | 13.5Ø |
| 2400-2500 | 0.25 | 20 | 150 | Drop-in | 31.7*25.4*10 |
| 2700-3500 | 0.4 | 18 | 30 | Drop-in | 19*19*8.6 |
