The frequency ranges listed are for reference only and are not exhaustive. If you want other frequency ranges, please contact us for customization

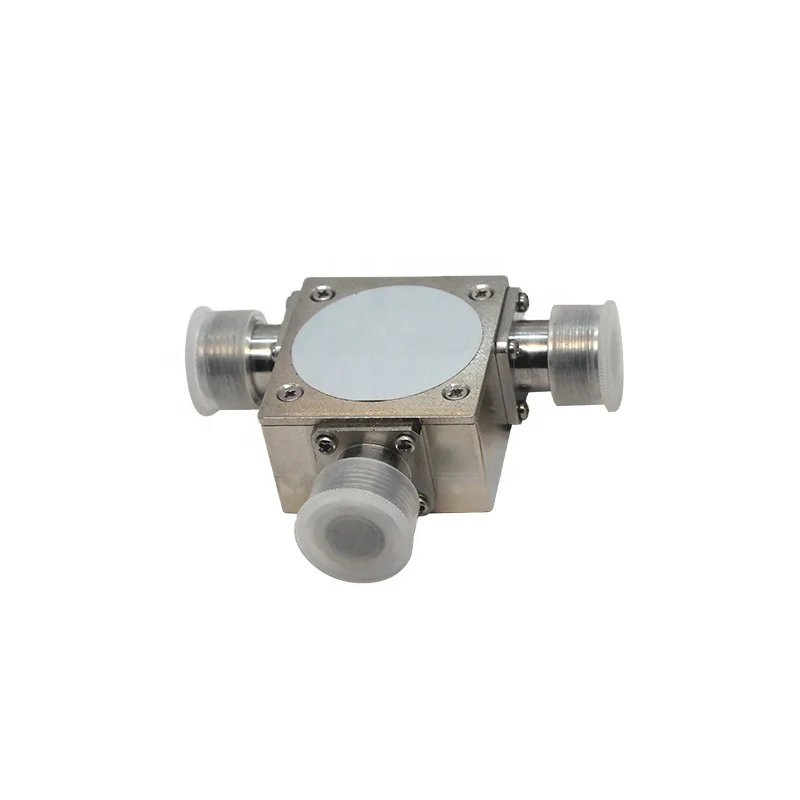

This model is designed to work at frequency range of 1650-1900MHz in coaxial SMA Female Package. The insertion is 0.5dB, isolation is 18dB and average power is 100W.
APPLICATION：
RF Circulators and Isolators are widely adopted in Radar Systems, Telecom Infractures, (Navy, Marine, and Aerospaces), Microwave Radio Systems, Communiation Systems, Wireless Radio Systems, R&D Labs and Mining, Production and Defense Industries.
| Frequency Range (MHz) |
I.L.(dB)
|
Isolation (dB)
|
Avg Power(W)
|
Type |
Dimension (mm)
|
| 1010-1110 | 0.3 | 20 | 500 | N/SMA | 35*38*20 |
| 1020-1100 | 0.35 | 21 | 300 | Drop-in | 35*38*13 |
| 1100-1350 | 0.5 | 18 | 100 | Coaxial | 33*30*20 |
| 1150-1300 | 0.25 | 22 | 300 | Drop-in | 25.4*25.4*8.6 |
| 1300-1650 | 0.35 | 18 | 300 | Drop-in | 25.4*25.4*8.6 |
| 1325-1375 | 0.4 | 20 | 60 | Drop-in | 12.7*12.7*7 |
| 1350-1650 | 0.5 | 18 | 100 | Coaxial | 33*30*20 |
| 1390-1450 | 0.4 | 20 | 50 | Drop-in | 20*20*8.6 |
| 1390-1450 | 0.4 | 20 | 50 | Drop-in | 20*20*8.6 |
| Frequency Range (MHz) |
I.L.(dB)
|
Isolation (dB)
|
Avg Power(W)
|
Type |
Dimension (mm)
|
| 1515-1627 | 0.3 | 20 | 100 | Drop-in | 19*19*8.6 |
| 1600-1660 | 0.18 | 23 | 500 | Drop-in | 35*38*13 |
| 1600-1660 | 0.18 | 23 | 500 | Drop-in | 35*38*13 |
| 1650-1900 | 0.5 | 18 | 100 | Coaxial | 33*30*20 |
| 1680-1880 | 0.3 | 23 | 100 | Drop-in | 19*19*8.6 |
| 1700-1800 | 0.35 | 20 | 60 | Drop-in | 12.7*12.7*7 |
| 1753-1778 | 0.3 | 23 | 10 | Drop-in | 14.5*14.5*6 |
| 1753-1778 | 0.25 | 20 | 100 | Drop-in | 19*19*8.6 |
| 1785-1805 | 0.35 | 20 | 100 | Drop-in | 19*19*8.6 |
| Frequency Range (MHz) |
I.L.(dB)
|
Isolation (dB)
|
Avg Power(W)
|
Type |
Dimension (mm)
|
| 1800-2200 | 0.35 | 20 | 100 | Drop-in | 19*19*8.6 |
| 1800-2700 | 0.6 | 13 | 100 | Drop-in | 19*19*8.6 |
| 1800-2700 | 0.5 | 14 | 100 | Drop-in | 25.4*25.4*10 |
| 1800-2200 | 0.45 | 18 | 200 | N/SMA | 30*33*20 |
| 1805-1880 | 0.35 | 20 | 10 | Drop-in | 12.7*12.7*7 |
| 1805-1880 | 0.3 | 23 | 60 | Drop-in | 12.7*12.7*7 |
| 1805-1885 | 0.3 | 23 | 60 | Drop-in | 12.7*12.7*7 |
| 1880-1920 | 0.35 | 20 | 30 | SMD | 10Ø |
