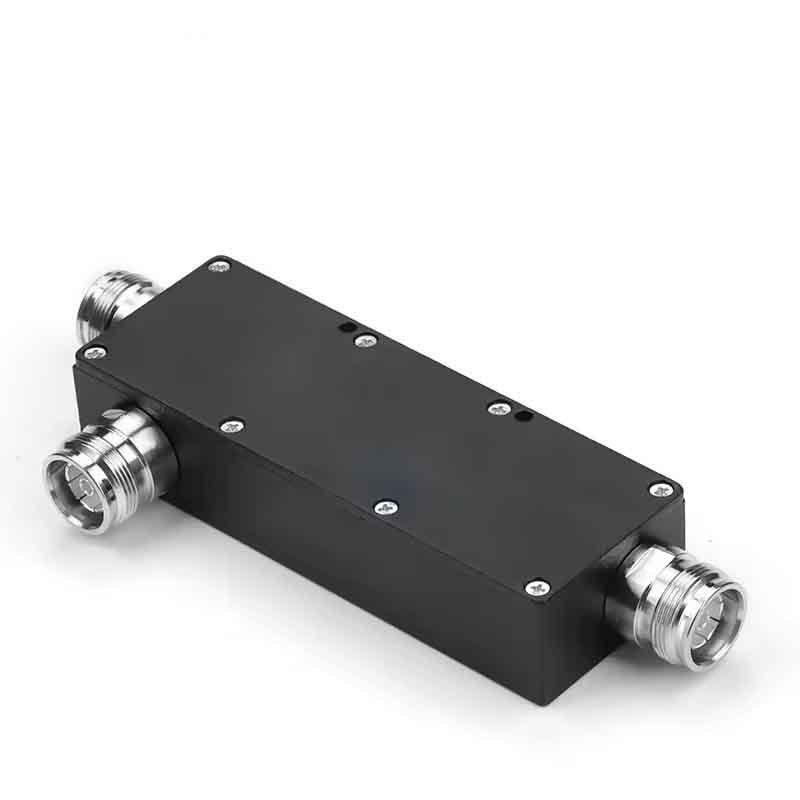

Directional Coupler

The frequency ranges listed are for reference only and are not exhaustive. If you want other frequency ranges, please contact us for customization

Frequency range 136MHz to 18GHz.

Military, space and commercial applications.

Low insertion loss, high isolation, high power handling.

Custom design available upon request.

Freq. Range (GHz)	Nominal Coupling (dB)	Flatness (dB)	IL (dB)	Directivity (dB)	VSWR	Power (W)	Connector Type	Temp. (°C)	Dimension L×W×H (mm)
0.136~0.174	5~40	±1.0	0.2	20	1.25	200	N	-20~+70	143×37×20
0.35~0.52	5~40	±1.0	0.2	20	1.25	200	N	-20~+70	143×37×20
0.35~2.7	5~40	±2.0	0.2	18	1.3	200	N	-35~+65	224.4×40×16.5
0.4~0.5	10~30	±0.7	0.5	18	1.25	50	SMA	-55~+85	128×15×11
0.5~2.5	10~30	±0.7	0.5	18	1.25	50	SMA	-55~+85	133×15×11
0.5~3.0	5~30	±1.0	0.24	18	1.3	300	N	-40~+80	180×44×21
0.698~2.7	5~40	±2.0	0.2	19	1.25	200	N	-20~+70	120×40×17.5
0.8~2.5	10~30	±0.7	0.5	18	1.25	50	SMA	-55~+85	85×15×11
0.8~3.6 (Dual)	7~10	±1.3	3.5	15	1.5	10	N, SMA	-40~+80	214×24×20
1.0~4.0	10~30	±0.7	0.5	18	1.25	50	SMA	-55~+85	73×15×11
1.0~4.0	6~30	±0.7	0.5	18	1.3	50	N	-55~+85	82×20×20
1.4~2.0 (Dual)	30	±0.7	0.5	18	1.3	120	N, SMA	-40~+85	74×48×20
2.0~8.0	10~30	±0.7	0.5	18	1.25	50	SMA	-55~+85	43×15×11

Freq. Range (GHz)	Nominal Coupling (dB)	Flatness (dB)	IL (dB)	Directivity (dB)	VSWR	Power (W)	Connector Type	Temp. (°C)	Dimension L×W×H (mm)
2.5~5.2	10~30	±0.8	0.4	20	1.3	40	SMA	-55~+85	43×15×11
3.0~4.0 Dual	50	±1.0	0.4	10	1.3	300	N	-40~+85	55×55×20
3.0~6.0 Dual	10~30	±1.0	1.0	18	1.3	100	SMA, N	-55~+85	100×25×19
4.0~12.4	10~30	±0.8	0.5	15	1.35	20	SMA	-55~+85	43×15×11
2.0~8.0	6~30	±1.o	1.0	16	1.5	50	N	-55~+85	55×25×23
6.0~18.0	10~30	±1.0	1.0	12	1.5	30	SMA	-55~+85	43×15×11
8.0~18.0	10~30	±0.7	0.8	10	1.5	50	SMA	-55~+85	33×15×11
9.0~10.0	6~50	±0.7	0.2	15	1.1	5000	WR90(BJ100)	-55~+70	100×41.3×56.8
